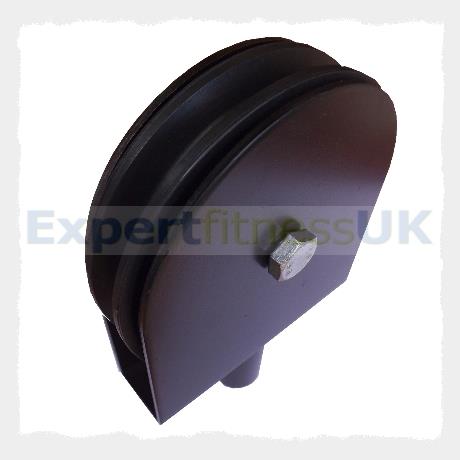

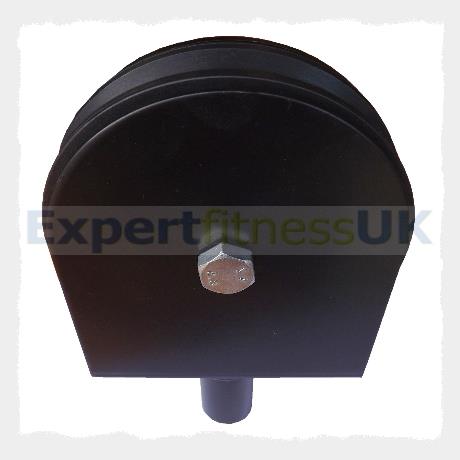

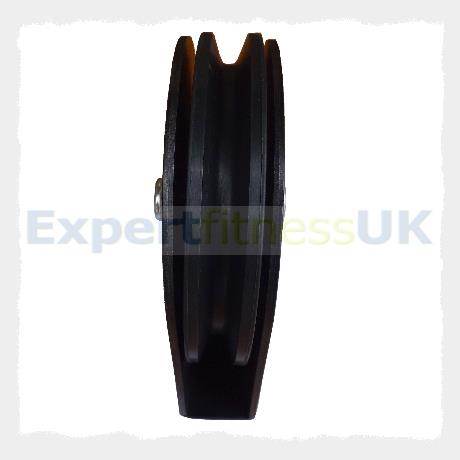

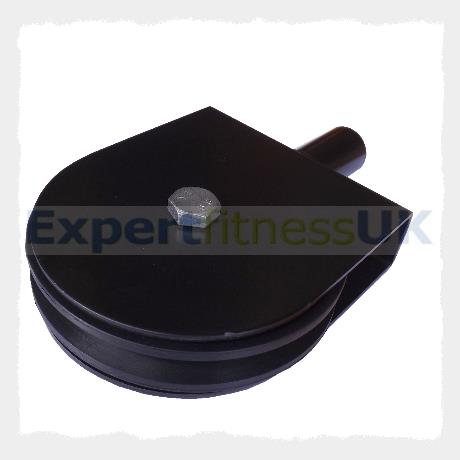

Gym Pulley Wheel Steel Bracket with 1/2″ Threaded Barrel

Gym Equipment Pulley Wheel Bracket with Male 1/2″ Threaded Barrel (unpainted) that can accommodate Gym Pulley Wheels up to 5″ (127mm) in diameter. Can also be used as a fixed Gym Pulley bracket by utilising the 1/2″ UNC threaded Male Barrel on the bottom of the bracket and bolting through machine framework. Suitable as a direct replacement or for new custom build multi gym equipment design projects.

Pulley Wheels available Separately: Please click here for Pulley Max Pulley Size 5″

For Bracket fitted with a 1/2″ Male Stud Instead < Please Click Here >

Dimension Outside Plates (OD): 130mm high x 112mm wide

Width Inner (Hub Between Plates ID): 25mm wide (1″)

Dimension Pulley Hub Centre Hole: 3/8″ Hole

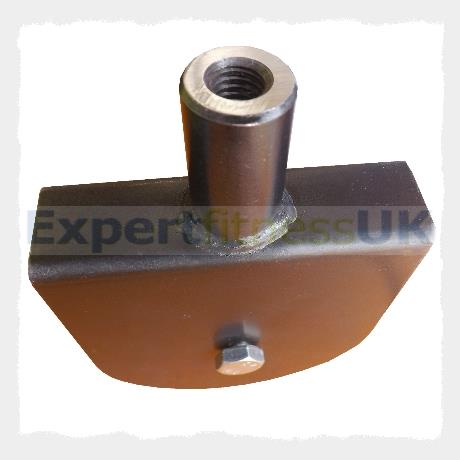

Bottom Barrel Fixing Internal Thread: 1/2″ UNC Thread x 1 1/2″ Long

Part Number: 12-0039
